Every WhaleyComm unit is professionally tested, reset to factory defaults, and certified by our in-house engineers — the same standard trusted by 5,000+ organisations across 25 years. Not a refurb marketplace. A certified lifecycle partner.
Professionally tested to factory specification. Backed by 25+ years of enterprise trust.

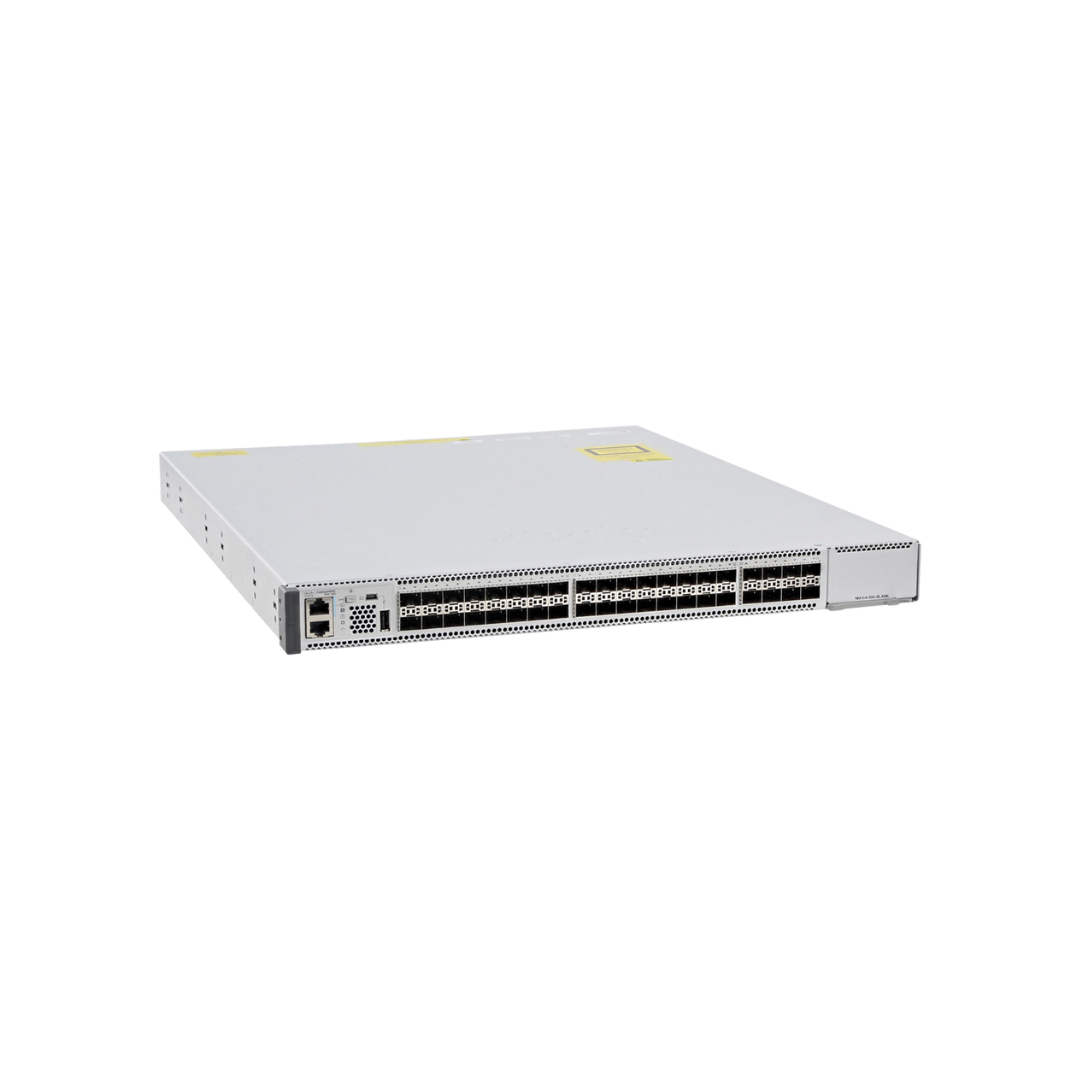

This refurbished Cisco C9500-40X-A is a Catalyst 9500 Series 40-port 10 Gigabit Ethernet switch running the Network Advantage license tier. Professionally tested and reset to factory defaults, this 1RU fixed-configuration switch delivers non-blocking 10G SFP+ connectivity across all 40 ports, with support for an optional network expansion module — making it a proven core and aggregation platform for enterprise campus and data center edge deployments.
Powered by the Cisco Unified Access Data Plane (UADP) 2.0 ASIC, the C9500-40X-A delivers up to 480 Gbps of switching capacity and up to 720 Mpps forwarding rate. The platform runs Cisco IOS XE, supporting model-driven programmability, StackWise Virtual for multichassis redundancy, MACsec 256-bit encryption, and a flexible SDM ASIC template architecture that allows the switch to be optimized for access-edge, aggregation, or core-border roles. The CPU is a 4-core x86 at 2.4 GHz with 16 GB DDR4 memory and 16 GB internal flash storage.
This refurbished C9500-40X-A delivers substantial savings versus new list price while meeting the same performance benchmarks. WhaleyComm's ISO 9001-certified refurbishment process, combined with R2v3 and e-Stewards certifications, ensures every unit ships in verified working condition — backed by a Lifetime Warranty.
Technical Specifications
Series
Cisco Catalyst 9500
License Tier
Network Advantage
Total Fixed Ports
40 x 1/10 Gigabit Ethernet SFP+
Optional Network Module Slot
1 (C9500-NM-8X or C9500-NM-2Q)
Switching Capacity
Up to 480 Gbps full duplex
Forwarding Rate
Up to 720 Mpps
MAC Address Table
Up to 64,000
Total IPv4 Routes
Up to 64,000 indirect / Up to 32,000 host
Total IPv6 Routes
Up to 32,000 indirect / Up to 16,000 host
Stacking
StackWise Virtual (2-switch logical unit)
Encryption
MACsec 256-bit AES
Operating System
Cisco IOS XE
Form Factor
1 Rack Unit (1RU)
Dimensions (H x W x D)
1.73 x 17.5 x 21.5 in (4.4 x 44.5 x 56.7 cm)
Weight (with 2 power supplies)
25.75 lb (11.68 kg)
Power Supply
950W AC (1 included; supports dual 1+1 redundant)
Input Voltage
90 to 264 VAC
Fans
5 field-replaceable variable-speed fans
Operating Temperature
32°F to 104°F (0°C to 40°C)
Storage Temperature
-4°F to 149°F (-20°C to 65°C)
Operating Humidity
5% to 90% non-condensing
Storage Humidity
5% to 95% non-condensing
Ideal Use Cases
Enterprise Campus Core
The C9500-40X-A provides non-blocking 10G switching across 40 ports in a compact 1RU form factor, making it a reliable and scalable core switch for large enterprise campus backbones.
Data Center Edge and Aggregation
With 480 Gbps switching capacity and wire-speed forwarding at 720 Mpps, this switch handles high-density server aggregation and east-west traffic at the data center edge without introducing bottlenecks.
Distribution Layer Consolidation
The flexible SDM ASIC template support allows the C9500-40X-A to be optimized for aggregation roles, making it an efficient distribution-layer switch in multi-tier campus architectures.
StackWise Virtual Redundancy Pairs
StackWise Virtual allows two C9500-40X units to operate as a single logical switch, enabling active-active redundancy and simplified management without dedicated stacking cables.
Secure Network Segments Requiring MACsec
Built-in MACsec 256-bit AES encryption across all ports makes the C9500-40X-E suitable for environments requiring link-layer encryption between switches, routers, or servers.
Programmable IOS XE Automation Deployments
Cisco IOS XE model-driven programmability and API support enable NetDevOps teams to automate provisioning, telemetry collection, and configuration management at scale.
What's Included
1x Cisco C9500-40X-A Catalyst 9500 40-Port 10G SFP+ Switch (refurbished)
2x 950W AC Power Supply (PWR-C4-950WAC-R)
5x Field-replaceable fan modules (installed)
Rack-mount hardware
Certificate of Testing
Lifetime Warranty — No Time Limits. No Questions.
Every WhaleyComm unit ships with a Lifetime Warranty. If it fails under normal operating conditions at any point, we replace it. We have stood behind our hardware for 25 years and 5,000+ customers — that is not a marketing line, it is our operating standard.
🔌
Compatibility Details
Review supported optics, cables, software, management protocols, and environment-specific compatibility guidance.
COMPATIBLE OPTICS & CABLES
✓
The Cisco C9500-40X-A is compatible with the following network modules: C9500-NM-8X (8-port 1/10G SFP/SFP+) and C9500-NM-2Q (2-port 40G QSFP+).
✓
Transceivers: Supports 10GBASE-SR, 10GBASE-LR, 10GBASE-LRM, 10GBASE-ER, 10GBASE-ZR, and DWDM SFP+ modules.
✓
Refer to the Cisco Transceiver Module Group (TMG) compatibility matrix for the full list of supported optics.
SOFTWARE COMPATIBILITY
✓
Software: Runs Cisco IOS XE.
ADDITIONAL COMPATIBILITY
✓
Compatible power supplies: PWR-C4-950WAC-R (950W AC), PWR-C4-950WDC-R (950W DC).
✓
Fan trays: FAN-T4-R (front-to-back airflow); up to 5 installed.
✓
StackWise Virtual is supported for pairing two C9500 switches.
For compatibility verification specific to your environment, contact our engineering team: +1 214 607-4800 or sales@whaleycomm.com
